Thermally broken aluminum inward opening and tilting system window

1. Product Overview

Product Name: Insulated Broken Bridge Aluminum Tilt & Turn System Window
Manufacturer: Guangdong Rodoer Construction Co., Ltd.
Product Positioning: High-end system windows for villas, residences, commercial buildings and curtain wall projects.

Developed based on rich curtain wall engineering experience, designed for high temperature, heavy rainfall and typhoon-prone coastal regions. Integrates multi-functional opening modes, thermal insulation, sound insulation and high wind pressure resistance.

Product Series:
• 110 Series Integrated Screen Tilt & Turn Windows
• 120 Series Heavy-duty Reinforced Tilt & Turn Windows
• Hidden Frame Tilt & Turn Windows for Curtain Wall

2. Product Display

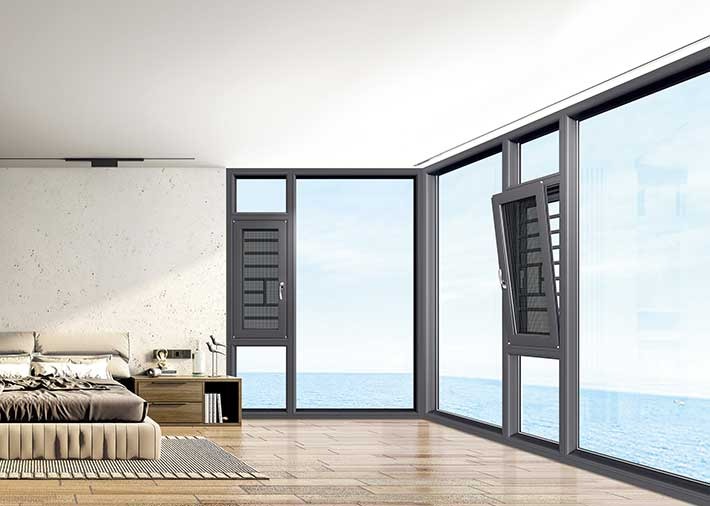

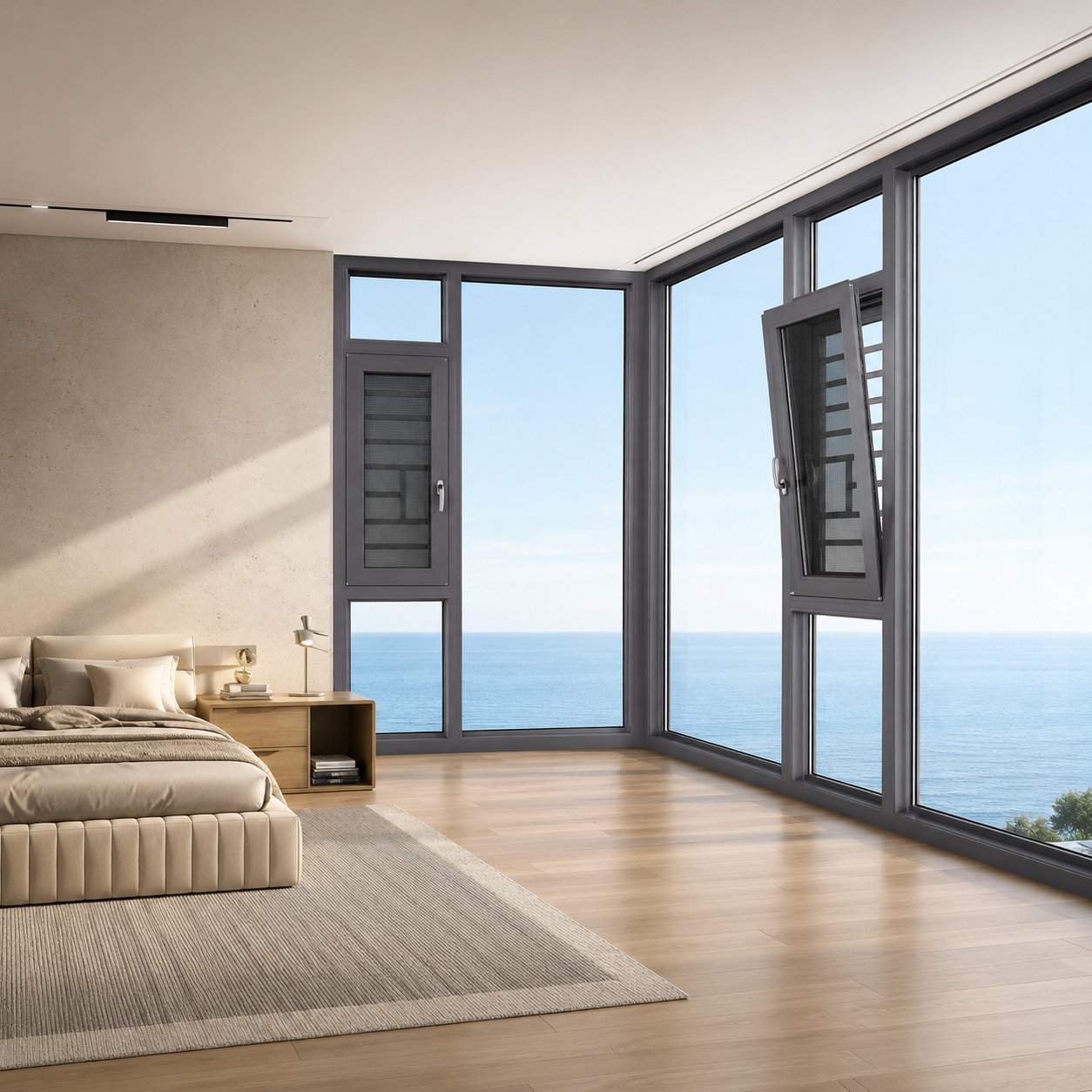

2.1 110 Series Integrated Screen Tilt & Turn Window

Minimalist narrow frame design with clean lines, suitable for modern architecture.

Opening modes: inward opening + tilt ventilation system.

Features integrated screen design with anti-mosquito and anti-theft mesh.

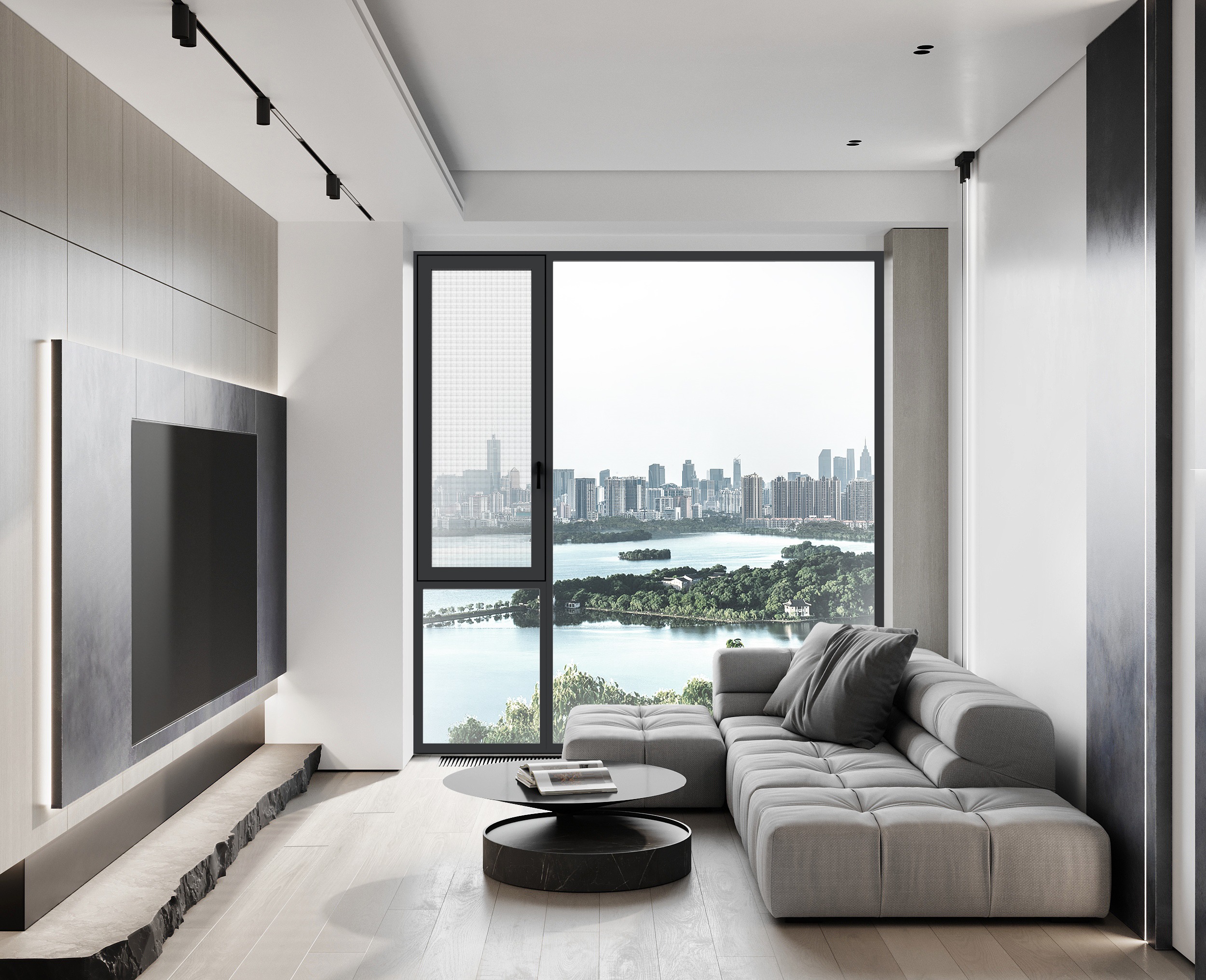

2.2 120 Series Heavy-duty Reinforced Tilt & Turn Window

Thickened multi-cavity profiles designed for villa and high-rise buildings.

Load capacity ≥ 100kg, strong wind pressure resistance.

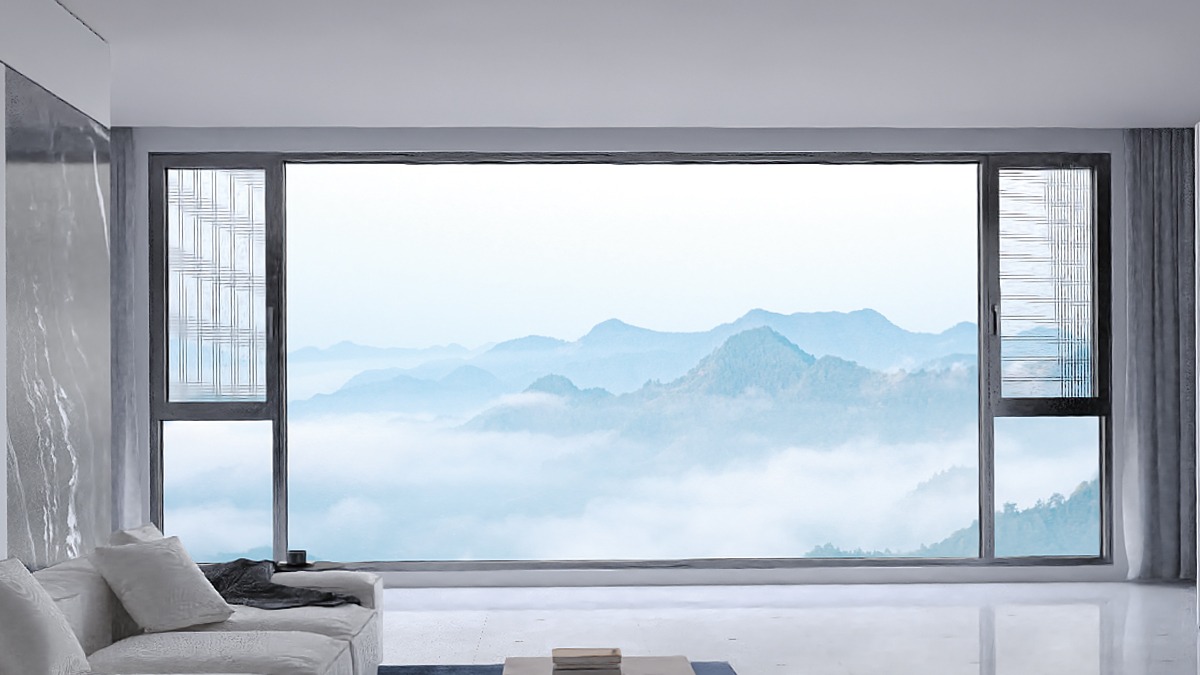

2.3 Hidden Frame Tilt & Turn Window

Hidden frame design, fully compatible with curtain wall systems.

3. Product Parameters

Material: 6063-T5 aluminum alloy
Thickness: 2.0mm / up to 3.0mm reinforced
Surface: Powder coating / Fluorocarbon coating
Colors: Grey, Coffee, White, Gold, Black

Glass: 5+20A+5 insulated tempered glass
Sound insulation ≥ 35dB, thermal insulation K ≤ 2.4W/㎡·K

4. Core Advantages

✔ Dual opening system for safety & ventilation
✔ High wind resistance for typhoon regions
✔ Energy-saving thermal insulation design
✔ Curtain wall grade manufacturing standard
✔ Full customization for different projects
